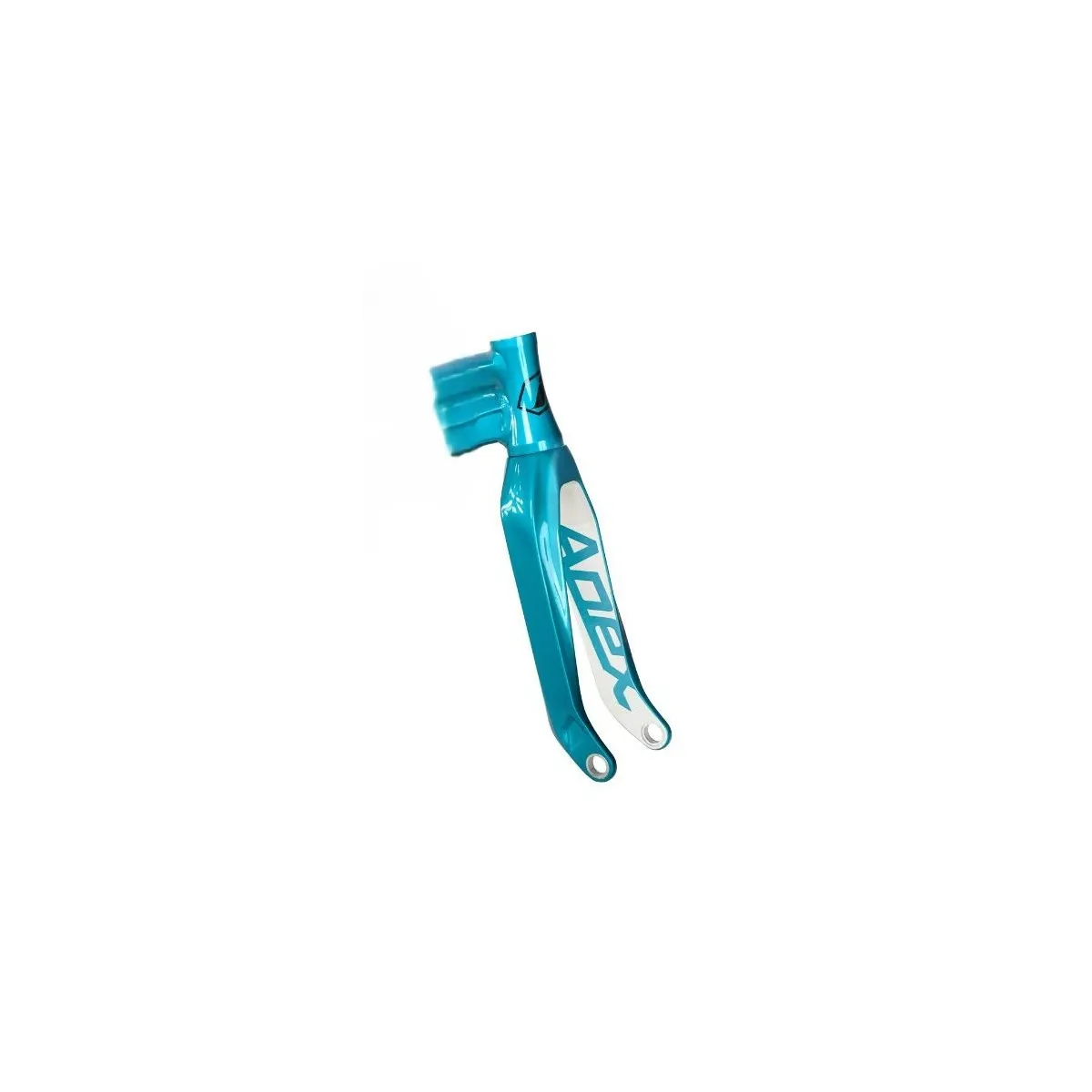

Pride Apex 11/8" 20mm Fork AM Blue 20"

PRIDE RACING APEX FORK Pride Racing offers top of the line products, even for the youngest riders. Having a good carbon fork increases the rigidity. Especially for children, carbon will allow young riders to lift the front of the bike more easily. Learning the "wheelie-roll" is ideal with a carbon fork for example. On this APEX model, a Stem Lock is included in the product. This Stem-Lock brings an incredible strength on the whole fork. It joins the top and bottom of the tube through the head tube, which almost fills the tube inside and makes it very strong. An oversized, 3.5mm thick, high quality aluminum tube (7075-T6). Pride Racing is the only brand on the market today to have such a thick pivot. A more aggressive design on the APEX fork, a 100% carbon leg with a 3K Gloss finish, the carbon fibers are visible. IMPORTANT NOTE: This fork must be mounted with the APEX Stem Lock. No warranty will be accepted if the STEM LOCK is not used. The Stem Lock is a safety device. IN DETAIL : Leg material: Torray® T700S x Torray® T800S Carbon Fiber with internal polymer structure (PMI) Tube material: Aluminum 7075-T6 Integrated fork cone TECHNICAL SPECIFICATIONS : Fork height: 308mm Max Tire Size (Diameter): 542mm Max tire width at 534mm (451): 50mm Max tire width at 515mm (406): 55mm Hub width: 100mm Offset: 30mm SHIS top: 28.6mm SHIS bottom: 30mm Non-cutting pivot Weight: 525g TIGHTENING TORQUES: IMPORTANT: Always use a torque wrenchCompression screw tightening: 3 Nm (Max)Stem bolt tightening: 8 Nm (Max)Hub axle tightening: 8 Nm (Max)
