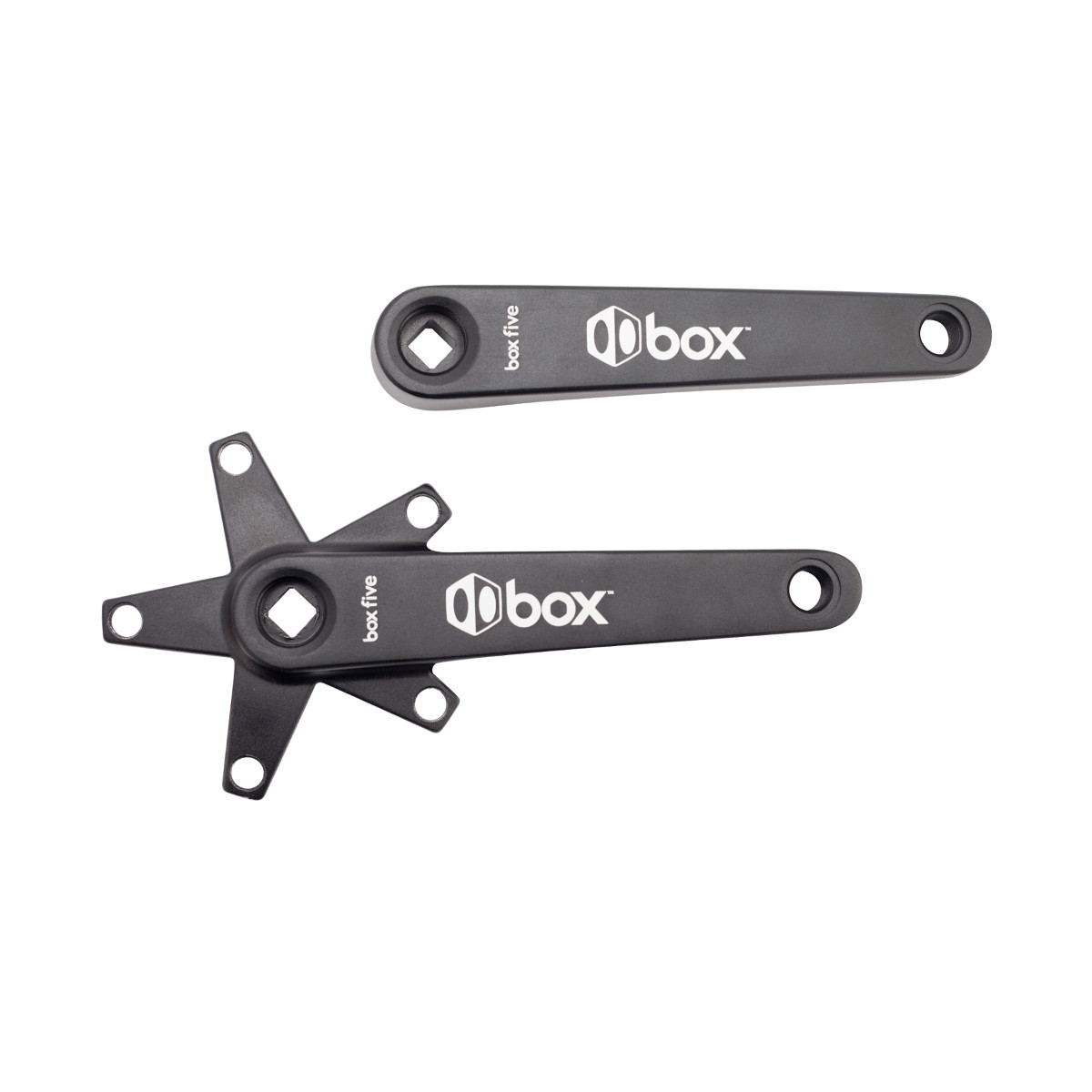

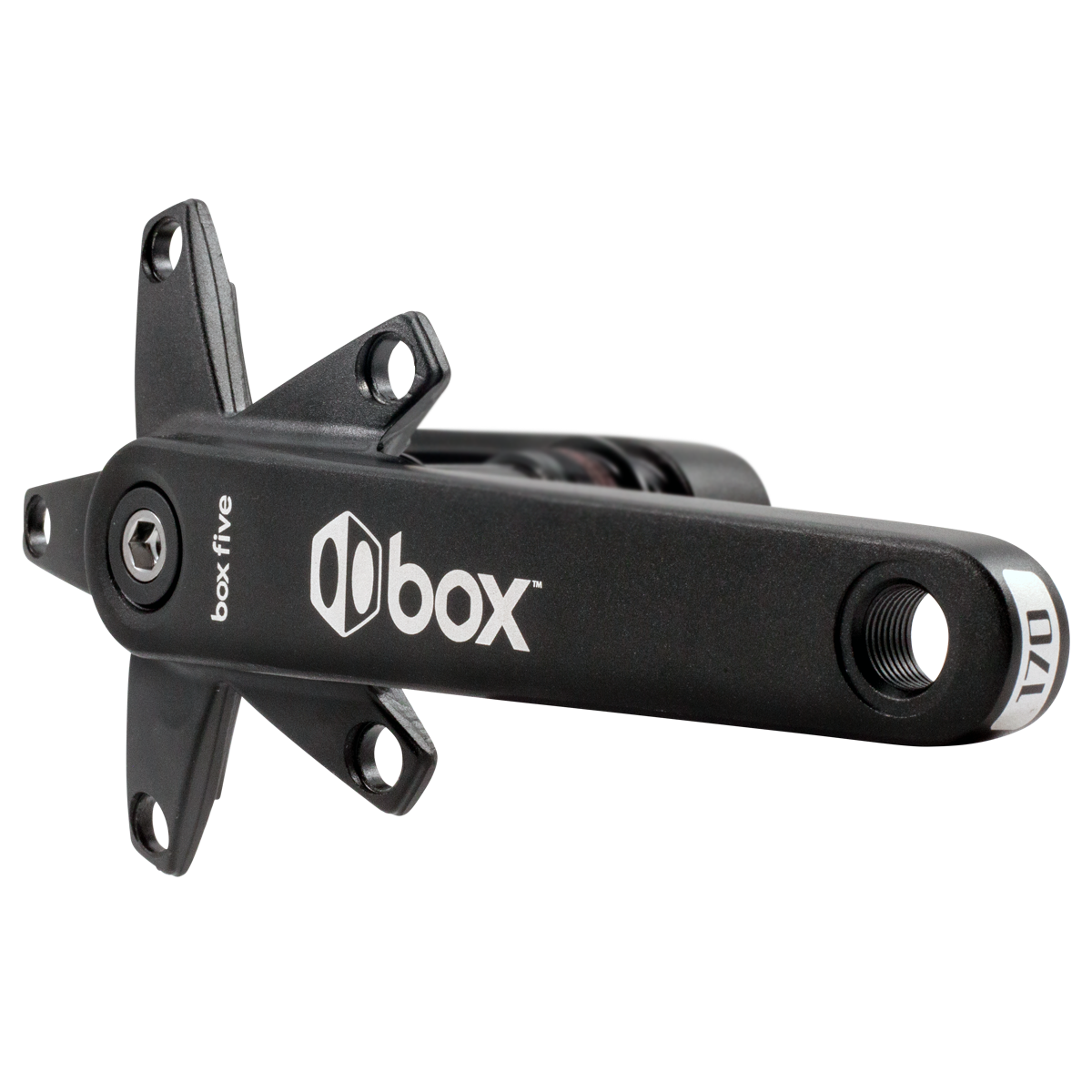

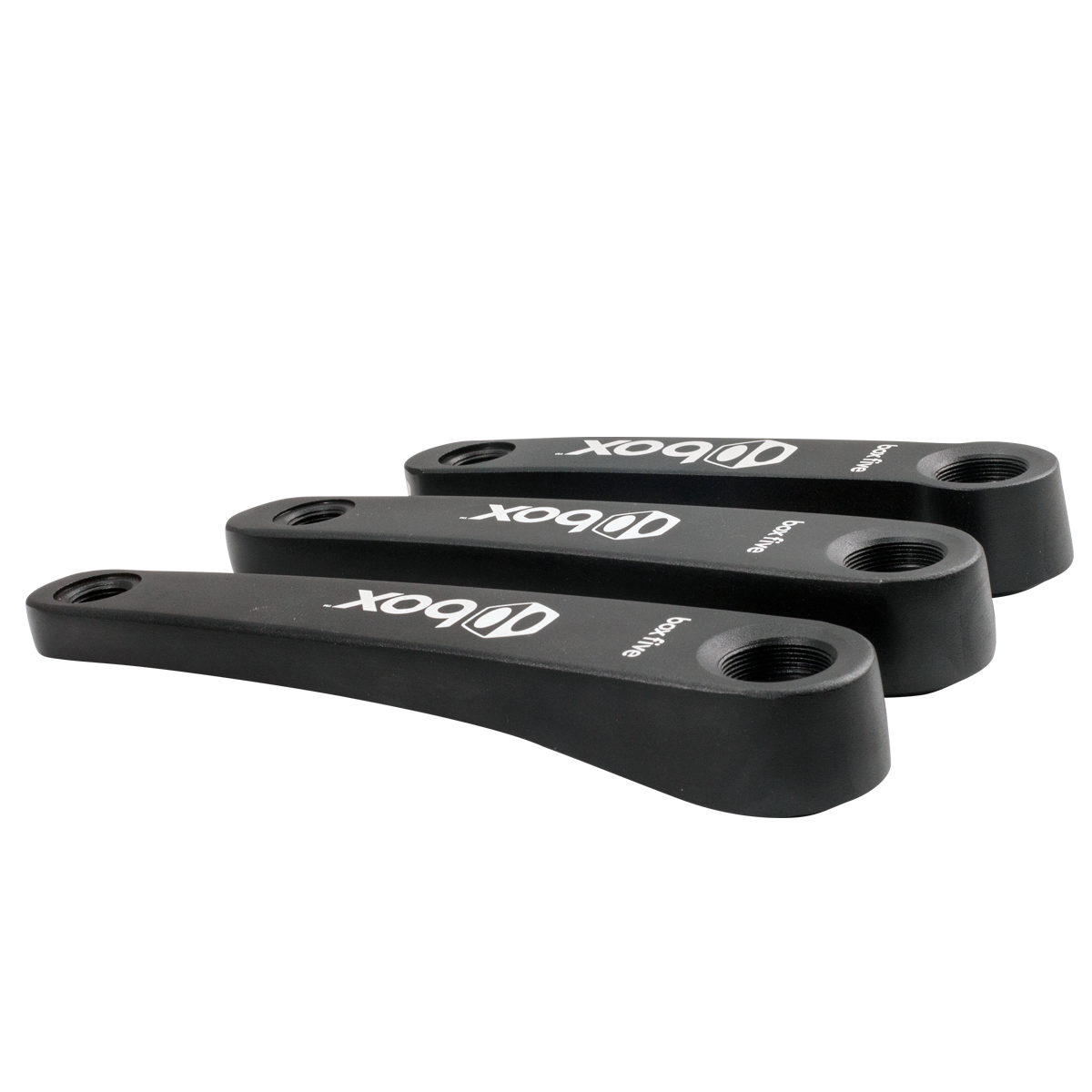

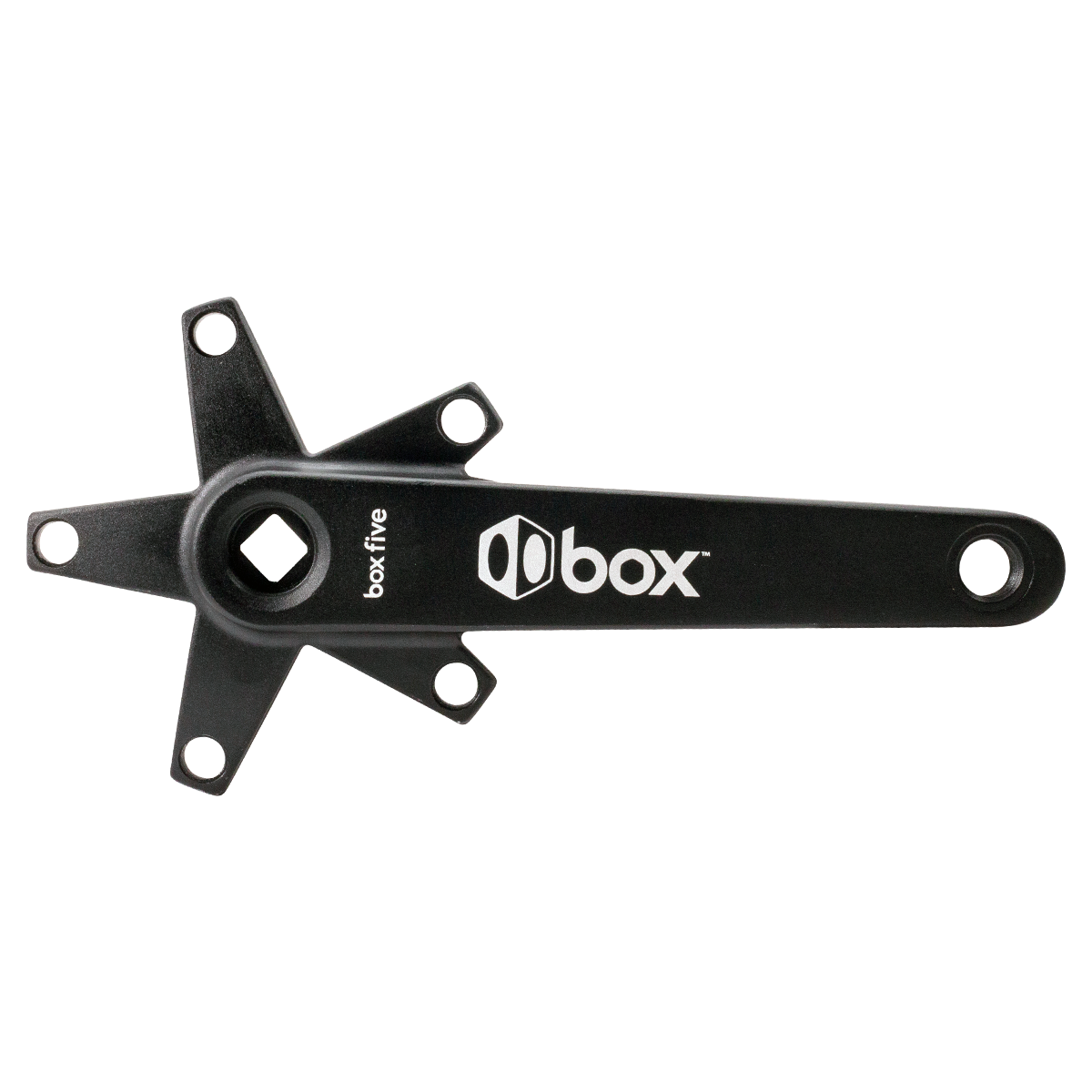

Box Five Square Taper Crankset
999 SEK
Featuring a JIS square taper standard, our oversized bottom bracket interface showcases a step-down shape specific to the crank arm length meeting at the pedal boss. Unlike alternative options, no two lengths are the same. Available in lengths from 135mm through 170mm, our durable cold-forged cranksets employs a 5 bolt 110 BCD chainring pattern.
All JIS square taper standard cranks are compatible with all BSA European style square taper bottom brackets.
- Osäker? Kontakta oss!
- Fri frakt vid köp över 2500kr
Beskrivning
Art.nr: 2397
SPECIFICATIONS
135mm 140mm 145mm 150mm 155mm 160mm 165mm 170mm
Spindle JIS JIS JIS JIS JIS JIS JIS JIS
Material 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum 6061-T6 Aluminum
Process Cold-Forged Cold-Forged Cold-Forged Cold-Forged Cold-Forged Cold-Forged Cold-Forged Cold-Forged
Chainline 44.5mm 44.5mm 44.5mm 44.5mm 44.5mm 44.5mm 44.5mm 44.5mm
Weight 480g/16.93oz 480g/16.93oz 490g/17.28oz 520g/18.34oz 520g/18.34oz 530g/18.69oz 560g/19.75oz 560g/19.75oz
FEATURES
• Oversized Bottom Bracket Interface
• Durable Cold-Forged Construction
• JIS Square Taper Design
• Top-Load Clamp Design
• 5 Bolt 110 BCD
